External Slip Dimple Connector
FUNCTIONALITY
InterventionDEPLOYMENT
Coiled Tubing
SECTORS
Oil & Gas

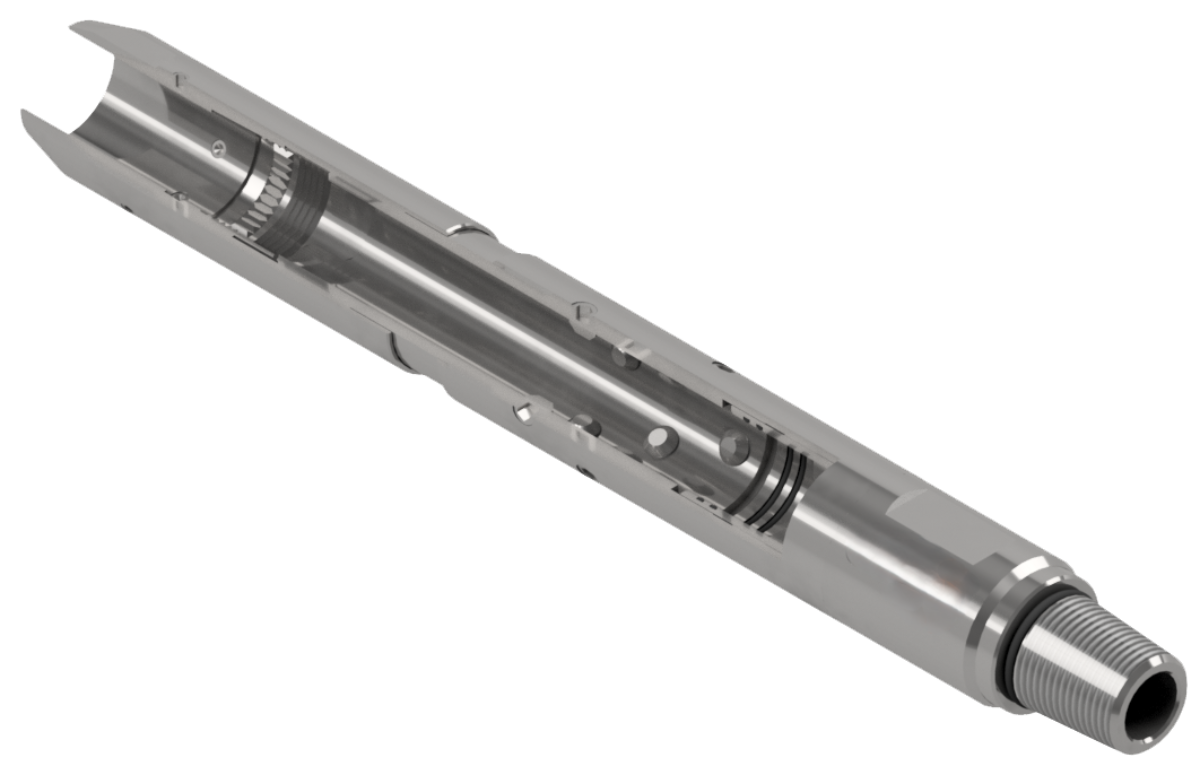

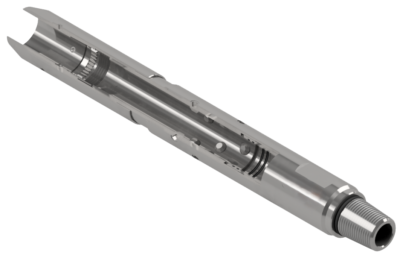

The Pragma External Slip Dimple Connector combines the strength of the Slip and Dimple connectors to form a very strong connector capable of transmitting high tensile loads and torque.
For the dimple connector a pattern of set screws in the body of the connector are locked into pre-formed dimples made on the outside of the coiled tubing using a Pragma dimple tool. In addition, a tapered slip with internal teeth bites onto the tubing and pulls up into a tapered bowl. The slips are engaged into the coiled tubing by making up the top sub.
Features
& Benefits
- Slips bite into the coiled tubing.
- Backed up by dimple connector.
- Spiralled dimple pattern with 12 dimple screws.
- Double Viton O-Ring seals
| PART NUMBER | COILED TUBING SIZE | OUTSIDE DIAMETER | INSIDE DIAMETER | LENGTH | TOOLSTRING CONNECTION |
|---|---|---|---|---|---|
| SDC125169AC08 | 1.688” | 0.75” | 1 ¼” | 13.95” | 1.00 AMMT |
| SDC150212AC09 | 2.125" | 1.00” | 1 ½” | 14.8” | 1.50 AMMT |
| SDC175238AC09-2 | 2.375" | 1.00” | 1 ¾” | 10.9” | 1.50 AMMT |
| SDC200288AC23-2 | 2.875” | 1.38” | 2” | 12.0” | 2.38 PAC |
| SDC238288AC23-1 | 2.875” | 1.50” | 2 3/8” | 10.0” | 2.38 PAC |
We offer optional equipment, alternative sizes, pressure ratings, materials and thread connections. Please contact us for more information.
